Turbidity Sensor - Smart Digital Inline Flow-through Sensor  Smart Turbidity Sensor - Inline Flow-through 90°IR Turbidity Auto Clean Smart Sensor
Turbidity Sensor - Smart Digital Inline Flow-through Sensor

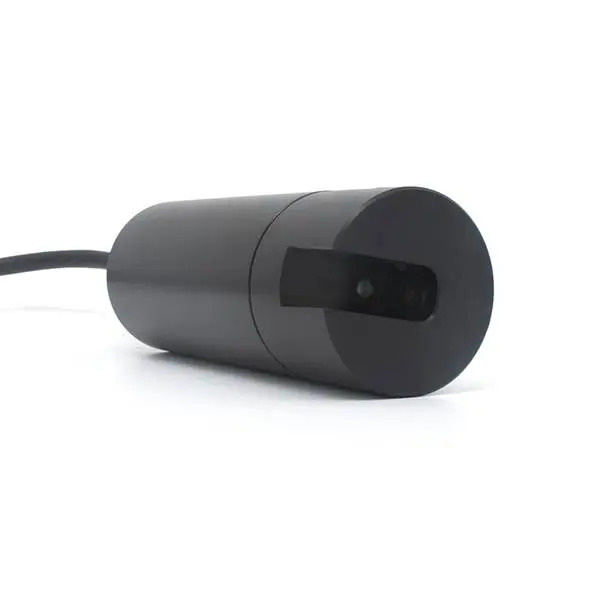

Turbidity Sensor - Smart Digital, Inline Flow-through 90°IR

Array

The Turtle Tough Smart Digital Turbidity Inline Flow-through Sensor with 90° IR Beam combines smart sensor technology with industry-leading optical measurement for a highly cost-effective turbidity solution

DOWNLOAD BROCHURE

Features
  • Inline Flow-through sensor utilising 90°IR Scattered light method
  • Smart Sensor Technology directly integrates with your industrial network or with Turtle Tough Smart Analysers
  • High-quality materials and superior construction for industrial applications.
  • Highly stable near-monochromatic infrared light source avoids the interference of chroma in liquid and external visible light influence
  • Built-in luminosity compensation provides improved measurement accuracy
  • High quality quartz lens greatly improves the optical transmittance allowing for superior transmission and absorption of infrared wavelengths
  • Optional ranges: 5 - 400/2000/4000 NTU
  • High stability, high precision and excellent reproducibility
  • Communication: MODBUS RTU (RS-485) and 4 to 20mA output

Few sensors can boast the versatility, low maintenance and industrial-strength that the TT-NTU-DSS-7930D turbidity sensor has to offer. The sensor body is made of 316L stainless steel, which is corrosion-resistant and extremely durable. A titanium version is also available for seawater applications or environments with high levels of corrosion.

The IP68 waterproof design can be fully immersed for continuous turbidity measurement in a wide variety of industrial applications including water quality monitoring, municipal water, industrial process water, cooling water, activated carbon filter effluent and membrane filtration effluent just to name a few.

The principle of the Turtle Tough Smart Digital Turbidity sensor is based on the combined infrared absorption and scattered light method. The ISO7027 method can be used to continuously and accurately determine the turbidity value. According to ISO7027 infrared double-scattering light technology is not affected by chromaticity to determine the sludge concentration value.



Product name Smart Turbidity Sensor - Inline Flow-through 90°IR
Code TT-NTU-DSS-7930D
Power/Outlet  9 - 36VDC/RS485 MODBUS RTU
 Measurement mode​  90°IR scattered light method
Dimensions Diameter 50mm*Length 223mm
Housing material POM+316 Stainless steel
Waterproof rating  IP68
 Measurement range 5-400/2000/4000 NTU
 Measurement accuracy  ±5% or 0.5NTU, whichever is greater
 Pressure Rating ≤ 44 PSIG
Measuring temperature 0-45℃
Calibration Standard liquid calibration, water sample calibration
Cable length Standard 10m. Optional lengths available on request
Thread Flow-through
Weight 1.0kg
Application General industrial applications, rivers, lakes, environmental monitoring, water quality, etc.
