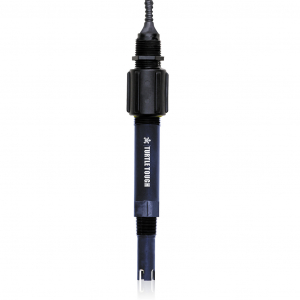

TOUGH Series - Fully Submersible

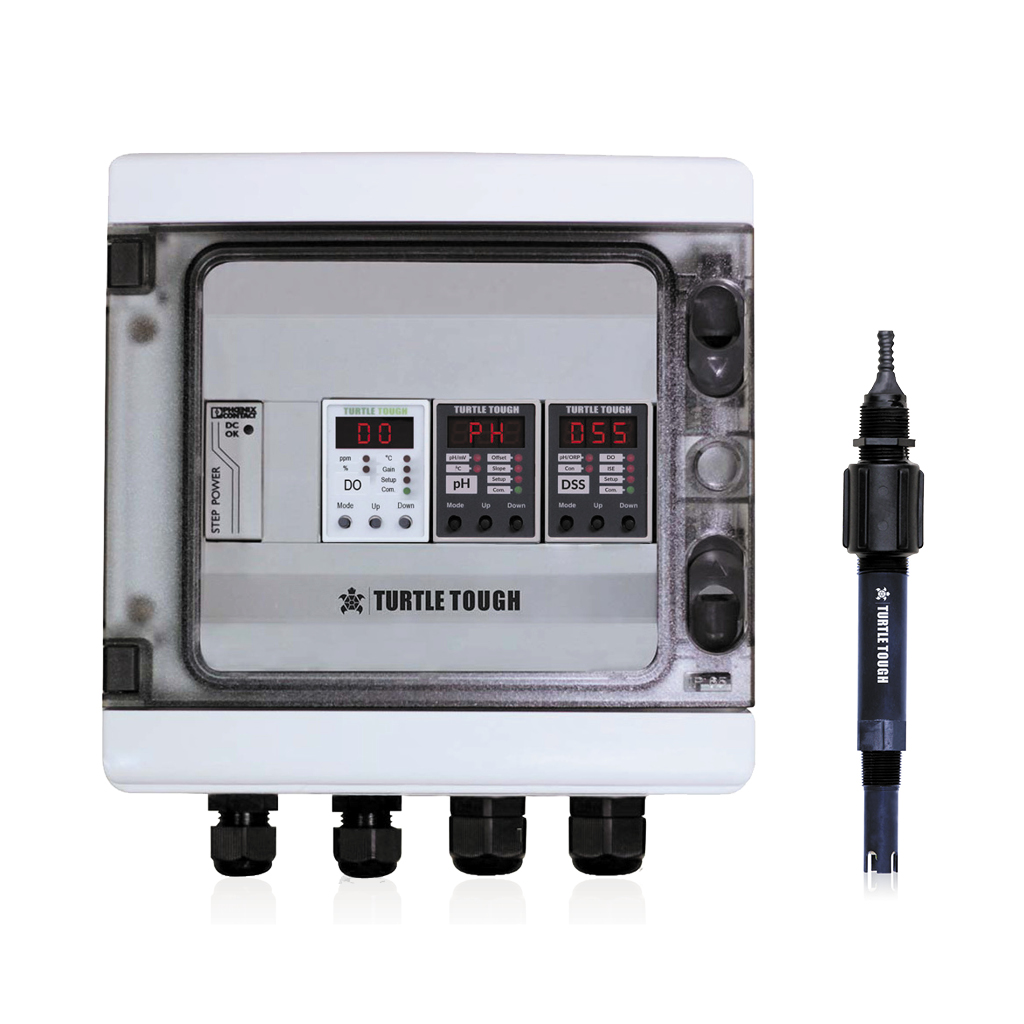

Tough pH/ORP System

Array

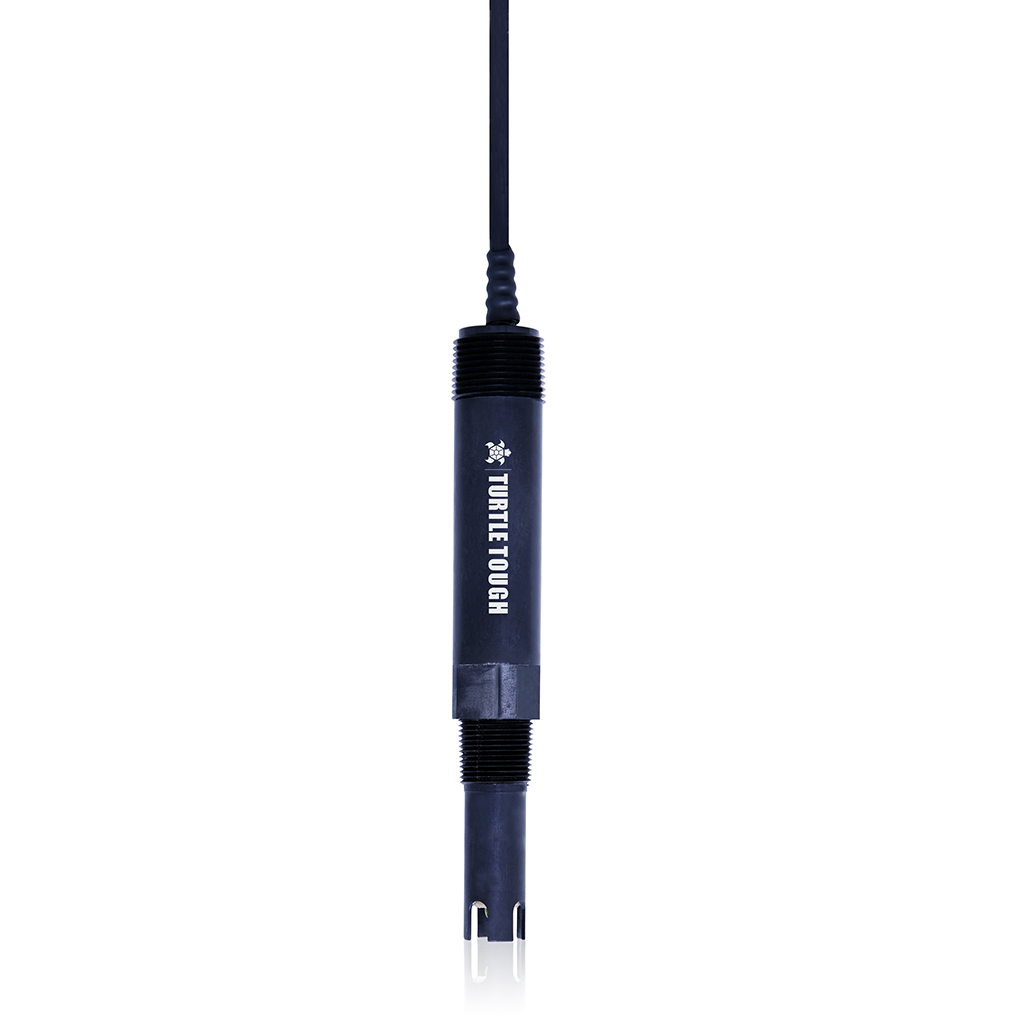

Sensor for TOUGH Applications – High Chemical Resistance

The TOUGH series sensors are an excellent choice for most industrial applications. The solid-state reference is low maintenance and offers long-lasting performance, while the RYTON body plastics are extremely resistant to chemical attack. The tough glass offers excellent performance across a wide pH range and reduces the expense of costly breakages. The TOUGH Series sensors share common chemistry and are available in immersion, submersible and inline configurations.

  • Designed for high chemical resistance to suit most industrial applications
  • Temperature range: - 5°C to 105°C
  • Low maintenance solid-state Polypropylene reference
  • Tough glass for easy cleaning
  • pH range: 0 - 14 pH
  • Inbuilt Acid/Fluoride, Sulphide Gas Resistant

DOWNLOAD BROCHURE

The TOUGH pH and ORP sensors are an excellent choice for most industrial applications. The solid-state reference is low maintenance and offers long-lasting performance, while the Ryton body plastics are extremely resistant to chemical attack. The tough glass offers excellent performance across a wide pH range and reduces the expense of costly breakages. The TOUGH sensors share common chemistry and are available in immersion, submersible and inline configurations.

Solid-State Reference
At the heart of our TOUGH range is a polypropylene solid-state reference system. Polypropylene has high chemical resistance and is very economical for industrial applications with temperatures up to 105°C. Unlike conventional sensors, our solid-state reference is formulated with specific salt mixtures, to provide extreme performance in a wide variety of applications. The non-porous attributes of this component make it extremely resistant to process contamination providing long life under harsh chemical conditions.

Anti-Fouling
Fouling is a common problem with most brands of sensors. Turtle Tough utilise a large open geometry design with coat resistant materials. Our ability to withstand high velocity allows the sensor to be placed in high flow areas to keep the sensor clean and maintain optimal performance of the sensor within the sensibilities of a standard cleaning regime.

Customise for your process
Our TOUGH sensors are available with the following options that allow you to configure the sensor for your application:
• Back-end waterproofing for fully submersible installation
• Cable Protection
• 12m Cable

About our SMART Sensor Technology
Turtle Tough gives you the option of a propriety digital signal or an open-source Modbus RTU signal that is universally accepted. To find more about the benefits of our Smart technology go to turtletoughsensors.com/sensortechnology

Sensor Care and Maintenance
Turtle Tough sensors can be cleaned and calibrated offline to facilitate a hot-swapping maintenance regime. To know more about our sensor care and hot-swap maintenance regime go to turtletoughsensors.com/support/maintenance



Sensor name  TOUGH
Measuring type pH ORP
Sensor installation types Immersion (IMR), Fully Submersible (SUB), Twist Lock Inline (TWL), Inline Sanitary & Hot Tap (SAN)
Output types DSS Direct Smart Sensor Technology (DSS). This open-source digital signal output (Modbus RTU) is compatible with a wide range of devices that can accept a Modbus signal*.
PD Proprietary Digital technology (RS485) (PD). This closed source digital signal output is only compatible with selected Turtle Tough Analysers*.
Pressure Immersion & Fully Submersible Sensor rating 150 psi. (6.9 to 1035 kPa)
Twist Lock Twist Lock Sensor rating 150 psi. Kynar Twistlock Fitting: 50 psi. PEEK Twistlock Fitting 100 psi.
Sanitary Inline Sensor rating 150 psi. Tri clover Fitting: Max recommended pressure 100 psi. 1 ¼ inch Threaded Socket: 150 psi (200 psi optional with sensor upgrade).
Hot Tap Sensor rating 150 psi. Hot Tap Assembly: Max recommended pressure 100 psi.
Temperature range -5°C to 105°C (Optional -35°C to 150°C)
Junction material Polypropylene
Cable length 6m
Temperature compensation Pt1000
Waterproofing None, unless specified or optioned. Fully Submersible comes standard with a full waterproofing option. Cable Protection is optional for all sensor configurations
Connection Connection Quick Connect Plug - 4PIN (NEMA 6P)
pH/ORP range 0 to 14 pH ±1000 mV Absolute. Optional, wide range ±2,000 mV Absolute
Measuring element type Proprietary Tough Glass Platinum ball in the low profile configuration
Element dimensions 8.0mm (0.315”) Diameter 5.0mm (0.197”) Diameter
Initial impedance N/A
Sodium-ion error < 0.15 pH in saturated Na⁺ solutions at pH 14.00 N/A
Acidic errors < 0.05 pH in HCl solutions at 0.00 pH N/A
Reference type Double Junction
Reference half cell Ag/AgCl saturated KCl
Primary junction Porous Ceramic, Saturated KCl in Cross-linked polymer, interfaced to the secondary junction
Secondary junction Solid-state non-porous cross-linked polymer embedded in Kynar support matrix holds excess KCl assuring saturation at all temps for stability and long sensor service life
Special features Acid/Fluoride, Ammonia, Chlorine and Sulphide gas resistant
Storage Keep at room temperature with a closed protector cap, filled with a storage solution in an upright position
Warranty 12 Month Conditional Warranty. Please go to turtletoughsensors.com/support/warranty-returns
