Hot-Tap - Dual Port Flush Purge Valve Retractable Assembly Hot-Tap - Dual Port Flush Purge Valve Retractable Assembly Hot-Tap - Dual Port Flush Purge Valve Retractable Assembly

Hot-Tap - Dual Port Flush Purge Valve Retractable Assembly

Array

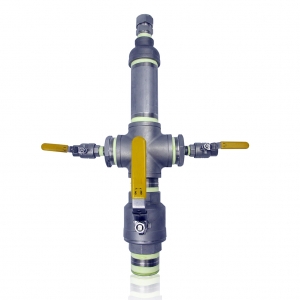

The unique Turtle Tough Valve retractable assembly allows fast and easy insertion & removal of sensors directly into process tanks or pipes at pressures up to 100 psig.

  • 316 Stainless steel
  • Flush sensors with cleaning solution before removal from process
  • Available as Single or Double Ball Valve, Stainless, Duplex or SAF and 2", 1" Or 1/2"
  • Comes with Valve, Body with Pressure relief valve, Top threaded fitting to take Swagelok
  • Required Components for complete assembly (sold separately)
    • Sensor Holder
    • Extension Tube

2" Assembly is Designed for viscous and process media.

1 1/2" Assembly is Suitable for clean process media.

1 1/4" Assembly is Supports 3/4″ rear threaded legacy sensors.

The HOT TAP valve retractable assembly is designed for use in conjunction with the sensor holder and extension tube assembly shown in the photos.

Standard material of construction 316SS. Optional materials includes SAF 2507 and Titanium.

Integral junction box installed on the extension tube for easy quick connect sensor maintenance. Quick connector system for digital pH/ORP/ISE/DO sensors with DSS technology.
