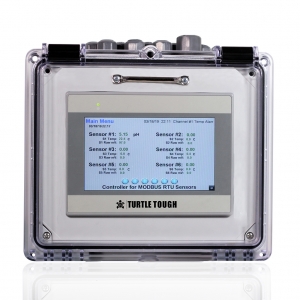

DSS Smart Touchscreen Controller

Array

A Multi-Channel, Multi-parameter Analyser that accepts any combination of Turtle Tough Direct Smart Sensors for either pH, ORP and Dissolved Oxygen.

  • Auto recognition of Direct Smart Sensors allows for hot swapping of sensors
  • Auto calibration and adjust calibration remotely
  • Available in 2,3 and 6 channel configuration
  • Remote access and email notification
  • NEMA 4X rated ready for wall or pipe mounting
  • CE, CSA and UL approvals for use in non-hazardous areas. Class I, Division II hazardous locations

Turtle Tough’s Family of PLC based Analysers and Controllers provides an unprecedented level of data management and connectivity with modern industrial networks. Driven by a powerful PLC, our factory programmed HMI’s provide a user-friendly interface that allows for easy management of sensors, data, and control systems. The intuitive touchscreen interface allows users to access dozens of sensor parameters, calibration information, diagnostics, event and data logging. The analyser can simultaneously connect with any combination of Turtle Tough’s pH, ORP or DO Direct Smart Sensors (DSS) and seamlessly interfaces with industrial networks utilising the latest industry protocols (MODBUS over Ethernet) providing a highly sophisticated platform for remote monitoring and control.

Multi-Channel touchscreen PLC analyser and controller’s features:

Multi-Channel, Multi-parameter Analyser

Available in two,three and six channel configuration. Accepts any combination of Turtle Tough Direct Smart Sensors for either pH, ORP and Dissolved Oxygen.

Plug n Play Smart Sensor technology

No hardwiring and instant sensor recognition permits hot swapping of sensors for quick maintenance and changeover.

Large touchscreen displays

Provides easy to read information and intuitive finger touch operation. Comprehensive sensor management is achieved by interfacing Direct Smart Sensor technology with powerful PLC based programming to access dozens of sensor parameters.

Comprehensive Outputs

Include analogue outputs (4-20mA), relay outputs with high & low setpoints for each channel with time delay, and digital output (MODBUS over TCP).

32GB Datalogging capacity

Record all process values, analytics and critical events Email Notifications – for all logged events

Remote Access (optional)

Secure EZAccess Software offers complete remote graphical access

Calibration

Calibrate sensors remotely or offline with FREE windows calibration software or with our convenient Handheld Field Communicator (sold separately)

Direct Smart Sensors with Digital MODBUS RTU Output (DSS)

Turtle Tough’s range of Direct Smart Sensors (DSS) are equipped with an onboard microprocessor which is capable of processing measurement data and providing a feature-rich digital MODBUS RTU output directly from the sensor. This enables the sensor to be directly interfaced with any MODBUS compatible data acquisition device, such as a PLC, RTU or data logger. Direct connectivity eliminates the need to interface with a traditional intermediary controller or analyser and provides unprecedented communication and control directly with the sensor.

Process more than a dozen parameters with Direct Smart Sensors including:

  • Measurement type
  • Calibration data
  • Raw and calibrated process values
  • Max/min temperature
  • Baud rate
  • Node
  • Serial number

…as well as useful service information such as the number of days in use. These values can be intelligently integrated into your data acquisition system to achieve a sophisticated level of analysis and control. The Turtle Tough family of PLC based Analysers and Controllers automatically acquires this data into a comprehensive suite of functions that allow full sensor management and control. We’ve done the hard work, so you don’t have to.
